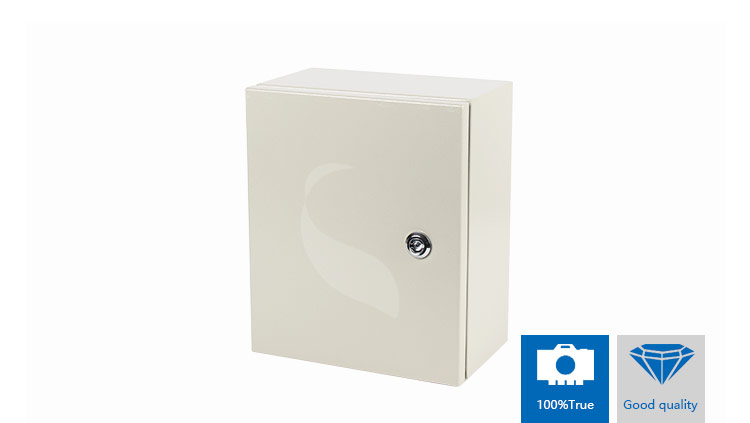

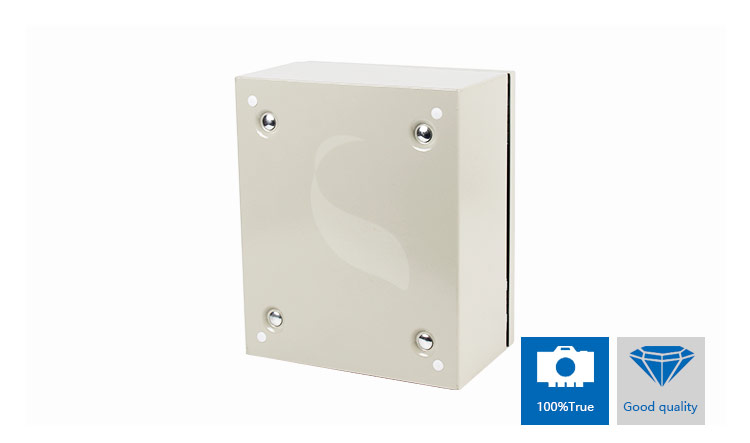

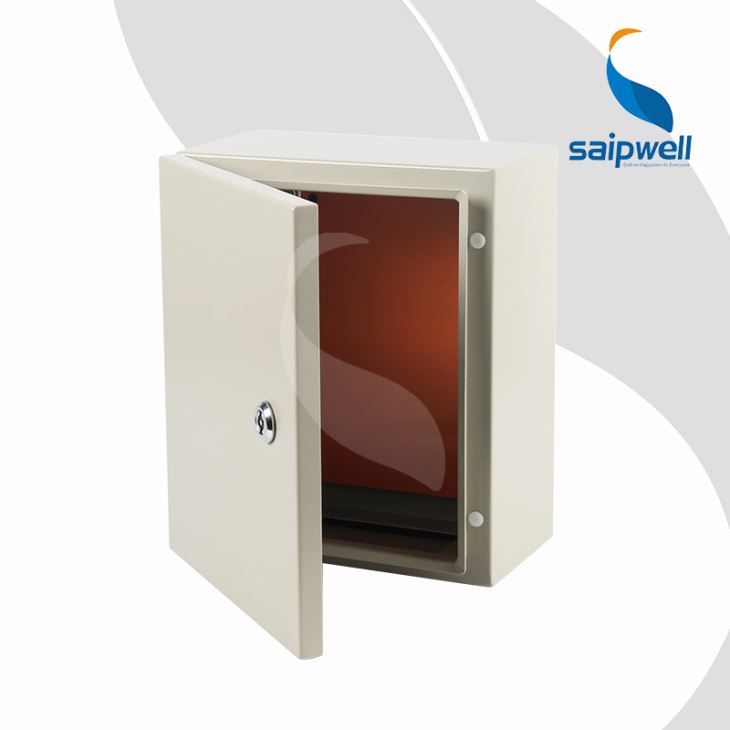

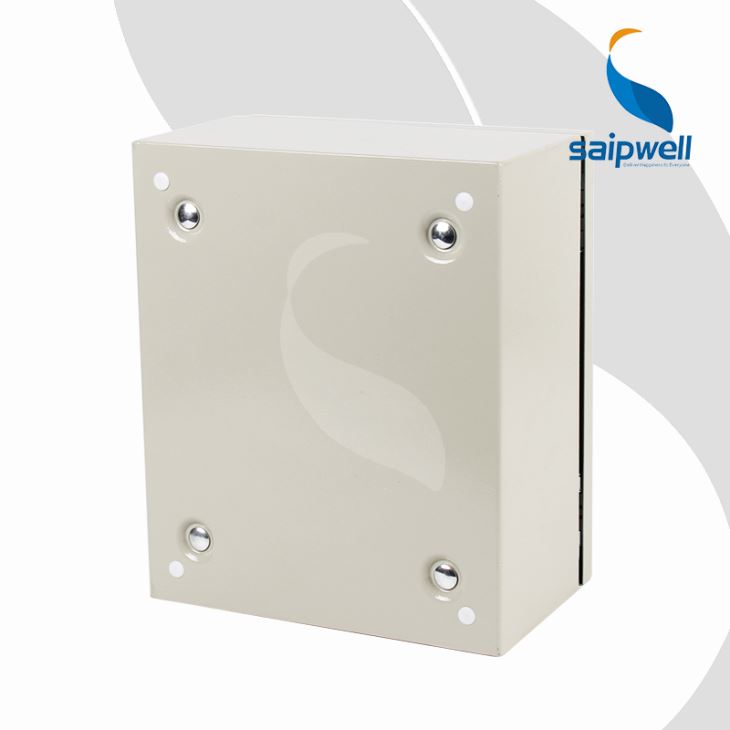

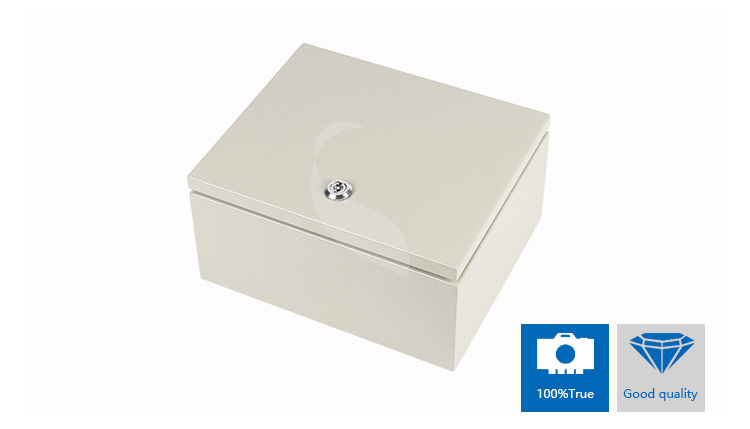

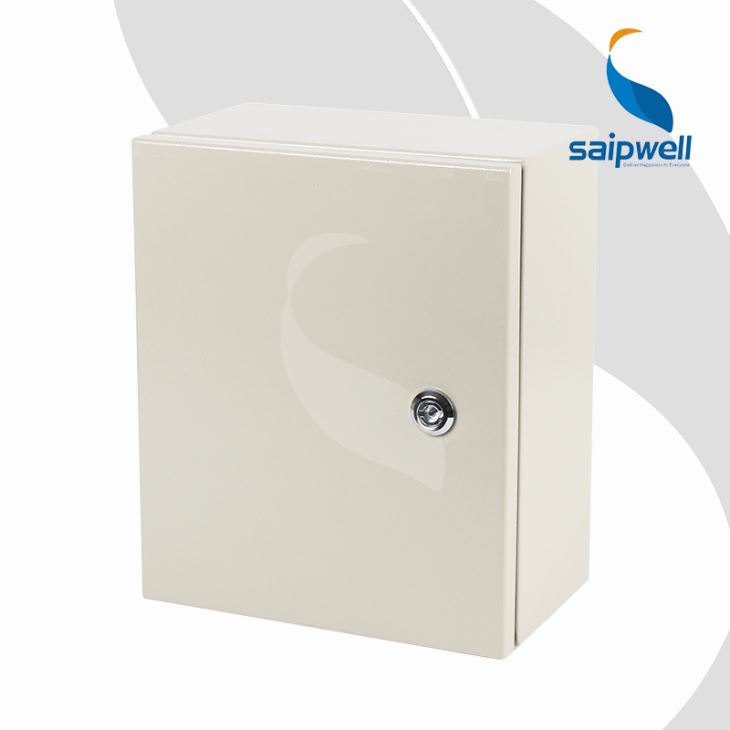

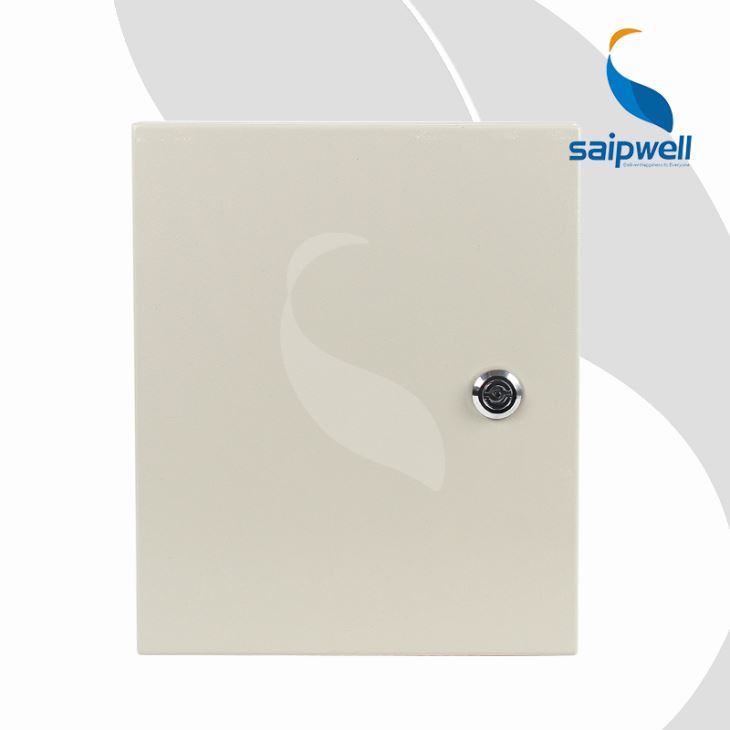

Steel Junction Box
Product Function
Provide different spec electric power for different electric equipment, and these box have waterproof, dust-proof , insulation protection function.
Technical Data
|
Model Number |
SPT-302515 |
|
Size |
300*250*150mm |
|
Material |
Cold Roll Steel |
|
Color |
RAL7032（Can be customized） |
|
Protect Grade |
IP65 |
|
Certification |
CE, RoHS, IEC |
Product specification
| Model | WxHxD(mm) | Enclosure&Door/mm | Mounting Plate(mm) |
| SPT252015 | 250 ×200 ×150 | 1.2 | 2 |
| SPT302515 | 300 ×250 ×150 | 1.2 | 2 |
| SPT302520 | 300 ×250 ×200 | 1.2 | 2 |
| SPT303015 | 300 ×300 ×150 | 1.2 | 2 |
| SPT303020 | 300 ×300 ×200 | 1.2 | 2 |
| SPT304020 | 300 ×400 ×200 | 1.2 | 2 |
| SPT403015 | 400 ×300 ×150 | 1.2 | 2 |
| SPT403020 | 400 ×300 ×200 | 1.2 | 2 |
| SPT404020 | 400 ×400 ×200 | 1.2 | 2 |
| SPT406025 | 400 ×600 ×250 | 1.2 | 2 |
| SPT406030 | 400 ×600 ×300 | 1.2 | 2 |
| SPT504015 | 500 ×400 ×150 | 1.2 | 2 |
| SPT504020 | 500 ×400 ×200 | 1.2 | 2 |
| SPT504025 | 500 ×400 ×250 | 1.2 | 2 |
| SPT505025 | 500 ×500 ×250 | 1.2 | 2 |
| SPT604015 | 600 ×400 ×150 | 1.2 | 2 |
| SPT604020 | 600 ×400 ×200 | 1.2 | 2 |
| SPT604025 | 600 ×400 ×250 | 1.2 | 2 |
| SPT605015 | 600 ×500 ×150 | 1.2 | 2 |
| SPT605020 | 600 ×500 ×200 | 1.2 | 2 |
| SPT605025 | 600 ×500 ×250 | 1.2 | 2 |
| SPT606025 | 600 ×600 ×250 | 1.2 | 2 |
How can i select right box from your company?
You need confirm the box size,material,IP level,custom requirement etc with us,so we will select right model for you.
Then,we can arrange product samples for you to test and check, you can place bulk order to us when the samples pass your application test.
Product Features
1.The case is made of steel material.
2.The product has passed strict waterproof and dust-proof test, it reaches IP65.
3.Accesspries including 2.0mm galvanized mounting plate,wall mounting parts,earth cable,etc.
4.Material(cold roll steel,stainless steel 201,304,316) and wall thickness(1.0/1.2/1.5/2.0mm) are optional.
5.Can be used at outdoor environment.
Application
Outdoor electrical switch box is a suitable choice for project boxes or internal junction box applications. Ideal for indoor or outdoor uses. It can be employed for a variety of applications, ranging from industrial equipment to medical devices.
FAQ
1.Q:What is your delivery time？
A:Usually, 3-7days for samples, 10-30 days for bulk goods.
2.Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL, FedEx, UPS,TNT. That’s a Door to Door service.
For big packages, we will send them by Air or By Sea. We will use good packing and ensurethe safety. We will be responsible to any product damage caused on delivery.
3.Q:What’s your payment terms?
A: Order amount more than USD$10000, we usual accept 30% T/T payment in advance, and the balance payment before shipment, terms could change according to our business relationship. Less rhan USD$10000, , the payment will be 100% T/T in advance
4.Q:How to order our waterproof box?
A: 1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
5.Q:Where can I get more products details?
A: Please check our website:www.saipwell.com
6.Q:Do you provide samples? Is it free or extra?
A: Yes, we could offer the waterproof box sample for free charge but do not pay the cost of freight.
7.Q: I need your price list of all your waterproof box, do you have a price list ?
A:We do not have a price list of all of our waterproof box. Because we have so many model, and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
