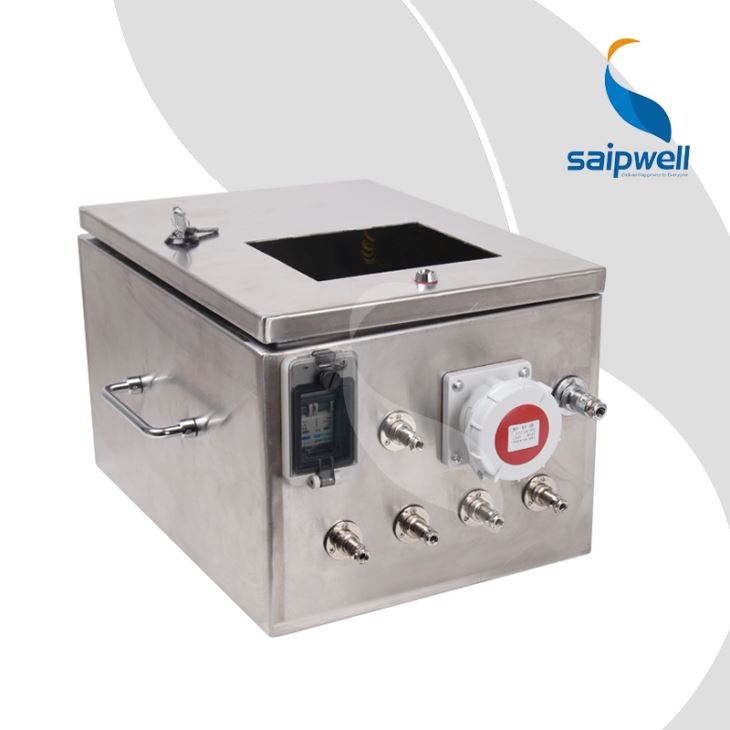

Plug Socket Box
Product Function
Provides protection against access of dust and splashing water for electric assembly parts or electric devices.
Technical Data
|
Model Number |
SPB302515 |
|
Size |
300 × 250 × 150MM |
|
Material |
SUS304 |
|
Finish |
Wire drawing |
|
Mounting plate |
galvanized mounting plate |
|
Protect Grade |
IP65 |
|
Against mechanical impacts |
IK10 |
|
Certification |
CE, RoHS, IEC |
Product specification
| Model | WxHxD(mm) | Enclosure&Door/mm | Mounting Plate(mm) |
| SPB252015 | 250 ×200 ×150 | 1.2 | 2 |
| SPB302515 | 300 ×250 ×150 | 1.2 | 2 |
| SPB302520 | 300 ×250 ×200 | 1.2 | 2 |
| SPB303015 | 300 ×300 ×150 | 1.2 | 2 |
| SPB303020 | 300 ×300 ×200 | 1.2 | 2 |
| SPB304020 | 300 ×400 ×200 | 1.2 | 2 |
| SPB403015 | 400 ×300 ×150 | 1.2 | 2 |
| SPB403020 | 400 ×300 ×200 | 1.2 | 2 |
| SPB404020 | 400 ×400 ×200 | 1.2 | 2 |
| SPB406025 | 400 ×600 ×250 | 1.2 | 2 |
| SPB406030 | 400 ×600 ×300 | 1.2 | 2 |
| SPB504015 | 500 ×400 ×150 | 1.2 | 2 |
| SPB504020 | 500 ×400 ×200 | 1.2 | 2 |
| SPB504025 | 500 ×400 ×250 | 1.2 | 2 |
| SPB505025 | 500 ×500 ×250 | 1.2 | 2 |
| SPB604015 | 600 ×400 ×150 | 1.2 | 2 |
| SPB604020 | 600 ×400 ×200 | 1.2 | 2 |
| SPB604025 | 600 ×400 ×250 | 1.2 | 2 |
| SPB605015 | 600 ×500 ×150 | 1.2 | 2 |
| SPB605020 | 600 ×500 ×200 | 1.2 | 2 |
| SPB605025 | 600 ×500 ×250 | 1.2 | 2 |
| SPB606025 | 600 ×600 ×250 | 1.2 | 2 |
| SPB606030 | 600 ×600 ×300 | 1.2 | 2 |
| SPB608030 | 600 ×800 ×300 | 1.2 | 2 |
| SPB705020 | 700 ×500 ×200 | 1.2 | 2 |
| SPB705025 | 700 ×500 ×250 | 1.2 | 2 |
| SPB806020 | 800 ×600 ×200 | 1.2 | 2 |
| SPB806025 | 800 ×600 × 250 | 1.2 | 2 |
| SPB806030 | 800 ×600 ×300 | 1.2 | 2 |
| SPB806040 | 800 ×600 ×400 | 1.2 | 2 |
| SPB808020 | 800 ×800 ×200 | 1.2 | 2 |
| SPB808030 | 800 ×800 ×300 | 1.2 | 2 |
| SPB8010030 | 800 ×1000 ×300 | 1.2 | 2 |
| SPB1006025 | 1000 × 600 ×250 | 1.2 | 2 |
| SPB1006030 | 1000 × 600 ×300 | 1.2 | 2 |
| SPB1008025 | 1000 × 800 ×250 | 1.2 | 2 |
| SPB1008030 | 1000 × 800 ×300 | 1.2 | 2 |
| SPB1008040 | 1000 × 800 ×400 | 1.2 | 2 |
| SPB10010030 | 1000 × 1000 ×300 | 1.2 | 2 |
| SPB10012030 | 1000 × 1200 ×300 | 1.2 | 2 |
| SPB1208030 | 1200 × 800 ×300 | 1.2 | 2 |
| SPB1208040 | 1200 × 800 ×400 | 1.2 | 2 |
| SPB12010030 | 1200 × 1000 ×300 | 1.2 | 2 |
What is plug socket box?
The device has the capability to treat gasket charging for the prevention of moisture or dust from flowing in. It is tested based on IP66 / IK10 protection standards.
Product Features
1. Raw materials can be customized, 201, 301, 304, 316, etc,.
2. IP66 protection against dust and water
3. High mechanical resistance against impacts
4. Door can be hinged on the left or the right side.
5. Excellent corrosion proof properties withstand dilute acid, base, salt and rain corrosion
Application
This box can be used for pedestrian and pathway illumination, industrial lighting system, floodlighting system, lighting of kiosks, signage and emergency power supply, control terminal box.
FAQ
1.Q: May I have your catalogue?
A: Yes ,E-catalog could be sent to your E-mail. Or we would put the catalog into your goods.
2.Q: I can’t find the product on your catalogue, can you make this Waterproof box for me?
A: Our catalogue shows most of our products, but not all. So just let us know what kind of waterproof box do you need, and how many do you want, better send us your design draws of the box. If we do not have it, we can also design and make a new mould to produce this waterproof box. For your reference, making a ordinary mold will take about 35-45 days
3.Q:Can we do OEM brand on the waterproof box?
A:Yes, OEM is available for brands and package based on our MOQ.
4.Q:How could I contact you ?
A:You could call us by +86-21-33050667, or E-mail us: saip@saipwell.com
5.Q: What’s your payment terms?
A: Order amount more than USD$10000, we usual accept 30% T/T payment in advance, and the balance payment before shipment, terms could change according to our business relationship. Less than USD$10000, the payment will be 100% T/T in advance
6.Q:Could we visit your factory?
A:Yes, We welcome customers to visit our factory. Please let us have your schedule in advance so we can make proper arrangement (transportation, accommodation, etc) for you.
